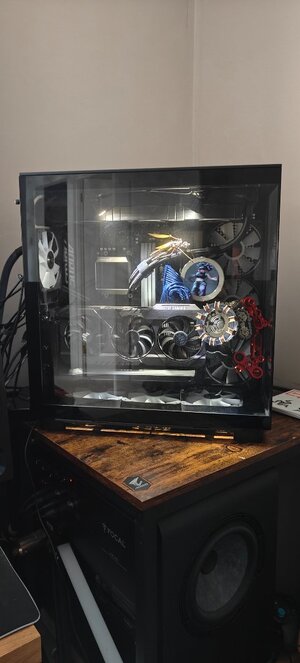

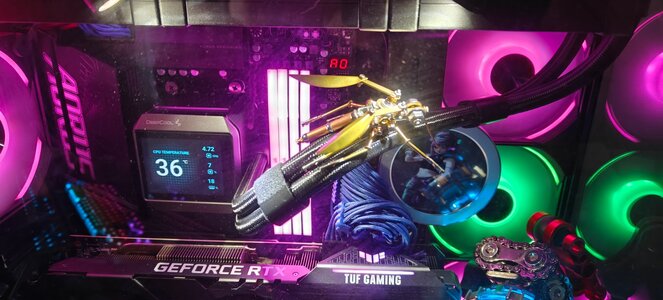

GPU fitted. Just waiting for delivery tomorrow of a Corsair 2x 8 pin to 16 pin power cable so I don't have to connect 3x 8 pin cables into the supplied adapter.



[Jasonovich]

View attachment 6804View attachment 6805View attachment 6806View attachment 6807
GPU fitted. Just waiting for delivery tomorrow of a Corsair 2x 8 pin to 16 pin power cable so I don't have to connect 3x 8 pin cables into the supplied adapter.

Talk about a tight fit, not much gap between the case and the GPU. You certainly got your measurements right! Are you using a standard GPU vertical bracket or did you customised the fitting yourself? Nicely done



[Timbot]

Talk about a tight fit, not much gap between the case and the GPU. You certainly got your measurements right! Are you using a standard GPU vertical bracket or did you customised the fitting yourself? Nicely done

The manual said that the max GPU length was 350mm and this one is 338mm. I did have a worry some moment when fitting as I thought I may have to dismantle more to get it in but a bit of a twist and it went in fine. Phew!

I've not got a bracket on this. I thought that the bracket was only requited in a vertical MB orientation setup? Please correct me if I'm wrong though so I don't end up with it sagging / snapping!

Didn't have to get the Dremel out for the case at least...!

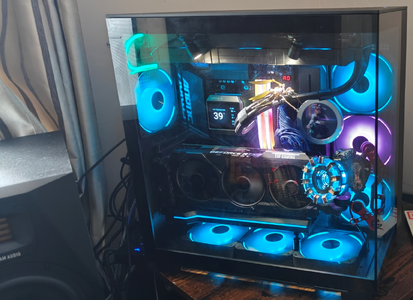

Corsair PSU Cable landed and it's all up and running.



[Jasonovich]

My bad, I see it now, the MB rests across the case not on the side, that's why I thought the GPU was vertically mounted! That's clever. MB's usually lie at the side of the case!

Good job getting the GPU fitted inside your case

Judging by the photo's I can't see any sagging , I don't think you need a bracket to prop up the sag. but for peace of mind, there's no harm in getting a small jack bracket like the one I use in my case, they're about £6-£7 on eBay.
