Noobs questions about cables

Cloodie

Active member
Jul 11, 2020
18
9
25
I know there's various threads about cables on here but as a complete noob to all this I'm hoping someone can answer some very basic (probably stupid) questions.

I've bought some Dali Spektor 2 speakers and although the seller has chucked in some speaker cable it's not long enough so I'll need to buy some instead. The manual unsurprisingly recommends buying Dali cables but my usual sources don't seem to stock it. Also, whenever I'm looking at cables a lot of them seem to have connections on them rather than just being the bare wire. Looking at the connectors in the speakers there is a hole there, would connectors plug into this? If so, is there any advantage to using connectors rather than the bare wires?


Gray

Well-known member
Nov 27, 2015
1,015
637
6,070
Controversial subject (as you've no doubt noticed).
My advice would be to choose some pure copper cable with a minimum conducter cross sectional area of 2.5mm.
4mm banana plugs fit those holes, some reasonably priced gold plated ones are all you need (or spade connectors).
You can you use bare wire if you want. I wouldn't.


plus 1

Well-known member
Dec 5, 2019
865
146
570
Controversial subject (as you've no doubt noticed).
My advice would be to choose some pure copper cable with a minimum conducter cross sectional area of 2.5mm.
4mm banana plugs fit those holes, some reasonably priced gold plated ones are all you need (or spade connectors).
You can you use bare wire if you want. I wouldn't.
here something like this :-


or if your feeling flush...

  • Like
Reactions: Gray

Simon 13th note

Well-known member
BANNED
Jul 27, 2020
183
72
170
Adam at futureshop is good and can do all the terminations. Always best soldered rather than screwed on. 4mm z plugs or banana plug type, but you can get cables on there of all prices. I wouldn’t spend much. I did but I got given loads of free cables so I don’t need to bother anymore.

  • Like
Reactions: plus 1

nopiano

Well-known member
Feb 15, 2009
288
176
19,070
Most modern speakers have terminals which will accept at least three popular types of connection - spades, bare wire, or banana plugs. The bananas are easiest for most purposes, but if you’re not likely to swap speakers then using bare wire will save a few quid.
Most amplifiers are equally versatile, though you’ve not said what model you’re using.
When measuring for your longer lengths, allow for any extra you might need to route the cable neatly, and not be under any tension when connected. A bit extra can be handy if you need to rearrange slightly.
You don’t need Dali’s own brand just because you have their speakers. The Van Damme mentioned above is a good product at a fair price.

Last edited:
  • Like
Reactions: plus 1

MUSICRAFT

Well-known member
OP - We use speaker cables which are in the main all terminated with 4mm banana plugs because it’s quicker and easier when changing amplifiers and loudspeakers several times a day. I take it that this is something you’re not going to be doing. If so and if the cable is manageable then using bare wire will be fine. Fwiw, I am using basic 79 strand speaker cables @ £1/m bare wired with the components as listed in my signature.

Btw, i’ll recommend popping along to your local electrical store or dealer and picking up basic 79 strand speaker cables as I believe these will be more than good enough for your loudspeakers.

  • Like
Reactions: Al ears

Al ears

Moderator
I prefer terminating cable with either spades or banana plugs.
You can, of course, use bare wire, it's certainly cheaper but the socket holes are for banana plugs and this is probably the best option for you as bare wire can tarnish over time.

  • Like
Reactions: Gray and plus 1

plastic penguin

Well-known member
Apr 28, 2008
1,637
84
19,770
IME a decent copper cable is ideal for most set-ups.

I found the best upgrade last year: Cleaned all the terminals, inputs/outputs, cable ends (all cables) with white spirit and it was like I had more expensive set of spaghetti.

  • Like
Reactions: DougK

plus 1

Well-known member
Dec 5, 2019
865
146
570
IME a decent copper cable is ideal for most set-ups.

I found the best upgrade last year: Cleaned all the terminals, inputs/outputs, cable ends (all cables) with white spirit and it was like I had more expensive set of spaghetti.
here is a decent copper cable with plugs :-

here is something to clean the plugs with :-

Last edited:

Cloodie

Active member
Jul 11, 2020
18
9
25
Actually I've just got round to looking at the back of the amp (it's actually a mini hifi) and it doen't look as though you can connect to it using anything other than bare wire. It's a Denon CEOL N11.

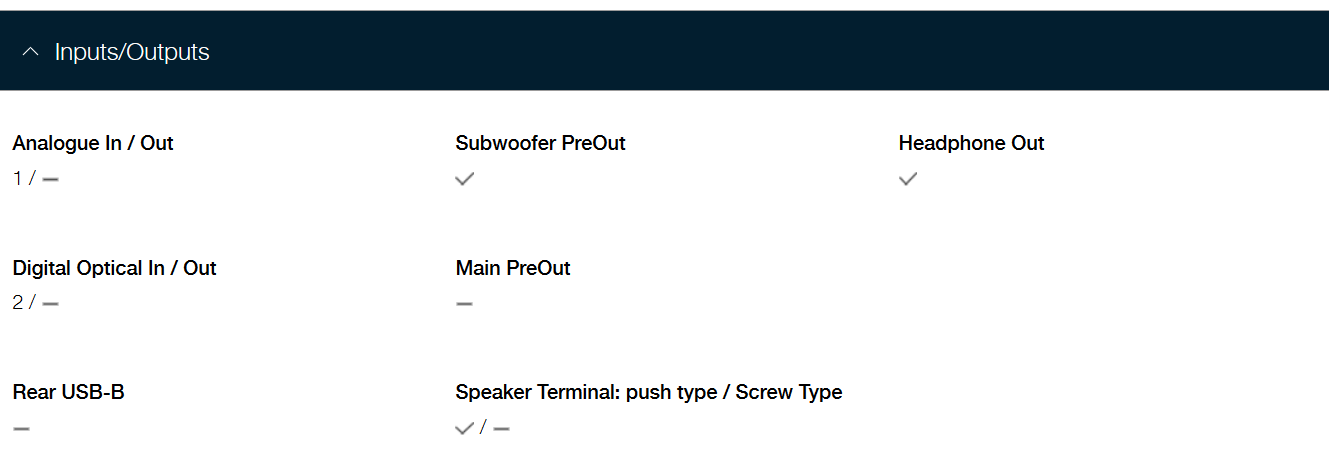

Here's a list of the inputs/ outputs



Al ears

Moderator
Actually I've just got round to looking at the back of the amp (it's actually a mini hifi) and it doen't look as though you can connect to it using anything other than bare wire. It's a Denon CEOL N11.

Here's a list of the inputs/ outputs

Pretty sure if you unscrew those terminals there will be a hole in the post that will accept bare wire.
