Planar 1 cartridge upgrade

[Al ears]

If i go for an atvm95e on my Rega do i need an alignment chart and a stylus force scale gauge?

Alignment maybe, not sure if there's a weight difference between your Carbon and the VM95e, you'll have to check, I mean the weight of the actual cartridge itself.
If there isn't you may not need the stylus force gauge but they are always handy to have.



[jonboywalton75]

Alignment maybe, not sure if there's a weight difference between your Carbon and the VM95e, you'll have to check.
If there isn't you may not need the stylus force gauge but they are always handy to have.

Just downloaded a free alignment chart so looking good 👍



[rainsoothe]

Even if there are markings on the weight, they're usually off, so a scale is kind of a must, imo. Nothing fancy, I think you can find some at 25-35 quid, and it's a one time investment.



[Al ears]

Even if there are markings on the weight, they're usually off, so a scale is kind of a must, imo. Nothing fancy, I think you can find some at 25-35 quid, and it's a one time investment.

Whilst I would tend to agree this turntable is basic and you only have to move the counterweight as far as it will go on the stub for it to balance the fitted cartridge. No other adjustments.
This is why I mentioned the weight of the replacement cartridge in question, if it doesn't equal that of the Carbon then a scale will be required.



[jonboywalton75]

Whilst I would tend to agree this turntable is basic and you only have to move the counterweight as far as it will go on the stub for it to balance the fitted cartridge. No other adjustments.
This is why I mentioned the weight of the replacement cartridge in question, if it doesn't equal that of the Carbon then a scale will be required.

Carbin weight 5 grams
At95vme 5.7



[Deleted member 108165]

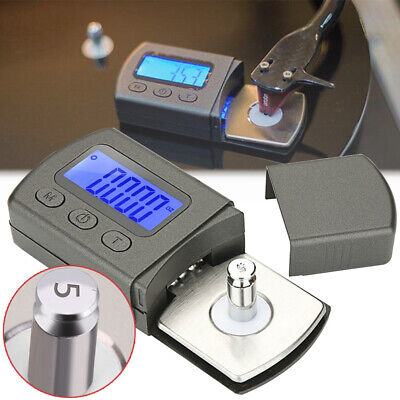

Something like this should be sufficient for your needs:

Stylus Force Scale Portable Pressure Professional Gauge Digital LCD Turntable | eBay

1pc x stylus force scale. With clear digital LCD display, easy to read. Compact size and lightweight, easy for carry. Easy to use, automatic turn off after three minutes not use. Operation temperature: about 10-30℃.

www.ebay.co.uk



[Al ears]

Carbin weight 5 grams
At95vme 5.7

That slight difference will still require a measuring gauge of some type.



[jonboywalton75]

X. Ni8 c. M9

Something like this should be sufficient for your needs:

Stylus Force Scale Portable Pressure Professional Gauge Digital LCD Turntable | eBay

1pc x stylus force scale. With clear digital LCD display, easy to read. Compact size and lightweight, easy for carry. Easy to use, automatic turn off after three minutes not use. Operation temperature: about 10-30℃.

www.ebay.co.uk

Cheers Doug



[Al ears]

Something like this should be sufficient for your needs:

Stylus Force Scale Portable Pressure Professional Gauge Digital LCD Turntable | eBay

1pc x stylus force scale. With clear digital LCD display, easy to read. Compact size and lightweight, easy for carry. Easy to use, automatic turn off after three minutes not use. Operation temperature: about 10-30℃.

www.ebay.co.uk

That's a good spot. Funny how some manufacturers put their own logo on these and sell them for a small fortune.... 🙂



[daytona600]

You will never see a rega cartridge on any other deck & most rega owners have swapped out the cartridge for something better
rega cartridgres are 14mm deep & every other cartridge on the market is 18mm deep & fit any of the millions of TTs on the market
you will need 3-5mm headshell shims or VTA risers to get the VTA correct but extra tonearm height could mean you have to remove dust cover
Bias & Tracking weight are fixed so select cartridge of same weight & bias adjustment
something like a technics SL you can fit a csrtridge in about 10secs , Carbon is actually about $10 new from china
https://drewlustro.com/blog/rega-rp1-stock-cartridge-replacement

View: https://www.youtube.com/watch?v=bb8STonWhg4



[Al ears]

You will never see a rega cartridge on any other deck & most rega owners have swapped out the cartridge for something better
rega cartridgres are 14mm deep & every other cartridge on the market is 18mm deep & fit any of the millions of TTs on the market
you will need 3-5mm headshell shims or VTA risers to get the VTA correct but extra tonearm height could mean you have to remove dust cover
Bias & Tracking weight are fixed so select cartridge of same weight & bias adjustment
https://drewlustro.com/blog/rega-rp1-stock-cartridge-replacement

Pretty sure the tracking weight is adjustable by moving the counterweight back a bit is it not?
As explained the Rega Carbon is based on the AT 91 so whatever the depth the AT 95 will be the same I believe so no shimmering should be required.
Admittedly this isn't the turntable that warrants upgrading.



[jonboywalton75]

Pretty sure the tracking weight is adjustable by moving the counterweight back a bit is it not?
As explained the Rega Carbon is based on the AT 91 so whatever the depth the AT 95 will be the same I believe so no shimmering should be required.
Admittedly this isn't the turntable that warrants upgrading.

Fitted the AT
Sounds great but the tracking weight was really hard to adjust
Once i pushed the counterweight full up the arm seemed to lower smoothly.
Just wondered with the 0.7 of a gram increase in cartridge weight whether that will be a problem.
As i say it sounds great at the moment



[EricLeRouge]

Rega Elys would be my choice, and I would experiment using Baerwald or Sterenson alignment (either) with two screws only. My experience of the Rega 3-point alignment is great for starting safe and fool-proof, but far from ideal soundwise.



[Al ears]

Rega Elys would be my choice, and I would experiment using Baerwald or Sterenson alignment (either) with two screws only. My experience of the Rega 3-point alignment is great for starting safe and fool-proof, but far from ideal soundwise.

You may have a point but the OP has already purchased his cartridge.
