manicm said:
So called switching Class D amps cannot be described as such (taken from Absolute Sound):
'Functionally, the M2 is an “integrated amplifier” that replaces a DAC, preamplifier, and power amplifier. The M2 eliminates from a traditional signal path all the electronics of a DAC as well as the active analog gain stages of a preamplifier and power amplifier. It does this by converting the PCM signal from a digital source directly into a pulse-width modulation (PWM) signal that turns the M2’s output transistors on and off. That’s it—no digital filter, no DACs, no multiple stages of analog amplification, no interconnects, no jacks, no analog volume control, no preamp. The conversion from the digital domain to the analog domain occurs as a byproduct of the switching output stage and its analog filter. This is as direct a signal path as one could envision. '
"So called switching Class D amps cannot be described as such (taken from Absolute Sound):"
Err, says who?
To be clear, NAD have not designed a new amp architechture, the concept of a direct digital drive to a switch mode output stage is well known, and if Wikipedia is to be believed, falls under the heading of 'Class D'.
Rather like class A, B AB and so on, D is used to define the output stage of an amp. In the case of class D, that is a switch mode output, driven by some form of pulse width modulation.
The pulse width modulator can use an analogue waveform as its input, or in the case of direct digital drive, a digital signal. This gets processed by a codec before driving the output switch mode output stage directly.

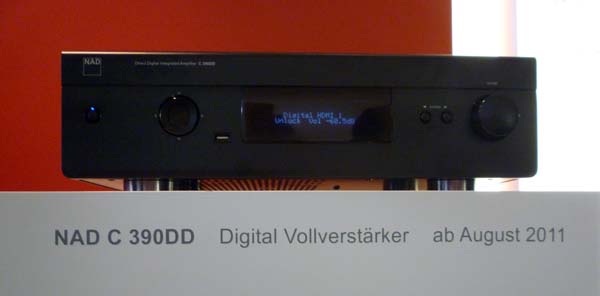

This is exactly how the NAD operates, and is therefore in my book a class D amplifier. If it looks like a duck, and quacks like a duck....
From Wikipedia on class D amplifiers:
Signal modulation
The most basic way of creating the PWM signal is to use a high speed comparator ("
C" in the block-diagram above) that compares a high frequency triangular wave with the audio input. This generates a series of pulses of which the duty cycle is directly proportional with the instantaneous value of the audio signal. The comparator then drives a MOS gate driver which in turn drives a pair of high-power switches (usually MOSFETs). This produces an amplified replica of the comparator's PWM signal. The output filter removes the high-frequency switching components of the PWM signal and recovers the audio information that the speaker can use.
DSP-based amplifiers which generate a PWM signal directly from a digital audio signal (e.g. SPDIF) either use a counter to time the pulse length e.g.[4] or implement a digital equivalent of a triangle-based modulator. In either case, the time resolution afforded by practical clock frequencies is only a few hundredths of a switching period, which is not enough to ensure low noise. In effect, the pulse length gets quantized, resulting in quantization distortion. In both cases, negative feedback is applied inside the digital domain, forming a noise shaper which has lower noise in the audible frequency range.
